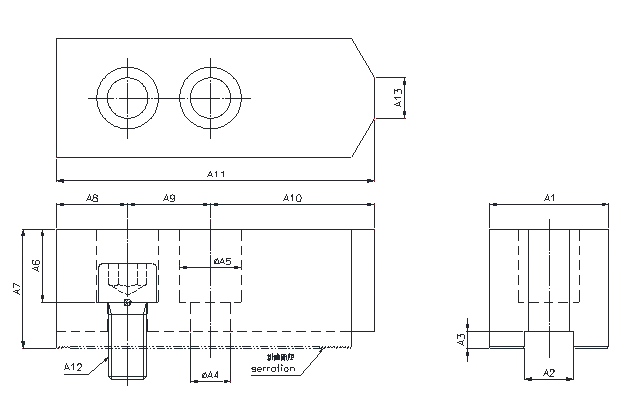

External Dimensions:
|
Dimensions Brand |
A1 | A2 | A3 | A4 | A5 | A6 | A7 | A8 | A9 | A10 |
|---|---|---|---|---|---|---|---|---|---|---|
| KJ-04 | 23 | 10 | 5 | 9 | 14 | 13 | 23 | 10 | 14 | 28 |
| KJ-05 | 25 | 10 | 5 | 9 | 14 | 18 | 30 | 10 | 14 | 38 |
| KJ-06 | 31 | 12 | 5 | 11 | 17 | 24 | 36 | 15 | 20 | 38 |
| KJ-08 | 35 | 14 | 5 | 13 | 19 | 22 | 37 | 24 | 25 | 46 |
| KJ-10 | 40 | 16 | 5 | 13 | 19 | 27 | 42 | 30 | 30 | 50 |
| KJ-12 | 50 | 21 | 5 | 18 | 26 | 33 | 50 | 40 | 30 | 60 |
|
Dimensions Brand |
A11 | A12 | A13 | serration | Matching Chuck | 3 jaw Wt.(kg) |
|---|---|---|---|---|---|---|
| KJ-04 | 52 | M8 | 3 | 1.5x60° | 3K-04 | 0.5 |
| KJ-05 | 62 | M8 | 3.5 | 1.5x60° | 3K-05,3G-05 | 0.8 |
| KJ-06 | 73 | M10 | 14 | 1.5x60° | 3K-06,3G-06 | 1.5 |
| KJ-08 | 95 | M12 | 16 | 1.5x60° | 3K-08,3G-08 | 2.4 |
| KJ-10 | 110 | M12 | 18 | 1.5x60° | 3K-10,3G-10 | 3.7 |
| KJ-12 | 130 | M16 | 23 | 1.5x60° | 3K-12,3G-12 | 6.3 |
※ With the use of raw claws or hard claws, the workpiece can be arbitrarily adjusted.
