Usable for oil and water-soluble coolant.
Coolant joint for high speed, high pressure and medium delivery.
Seal bushing inside is made of cemented carbide and ceramics, which provide higher wear-resistance.
The joint should not run without liquid.
Usable for oil and water-soluble coolant.
Seal bushing inside is made of cemented carbide and ceramics, which provide higher wear-resistance.
The seal will depart automatically if no liquid passes during operation, and will not be dmaged due to dry touching.
Coolant joint for high speed, high pressure and medium delivery.
Min. pressure is 4kgf/cm2.

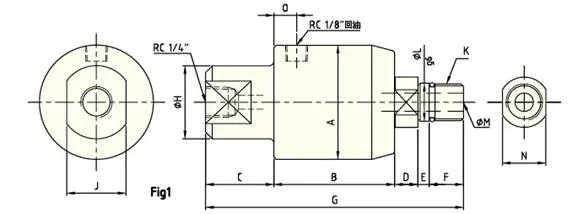

External Dimensions:
|
Dimensions Brand |
A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJ-50 | 50 | 53 | 30 | 10 | 113 | 32 | 26 | ||||
| CJ-80Y | 5 | 15 | 16.65 | ||||||||
| CJ-80 | 56 | 65 | 28 | 12 | 125 | 36 | 28 | M16x1.5LH左牙(or 5/8-18-LH) | |||
| CJ-90 |
|
Dimensions
Brand |
M | N | O | P | Fig | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJ-50 | 10 | - | 1 | ||||||||
| CJ-80Y | |||||||||||
| CJ-80 | 16 | 41.5 | 2 | ||||||||
| CJ-90 | 8 | 19 |
Technical Specifications:
|
Dimensions Brand |
Maximum Rotating Speed [rpm] |
Maximum Working Pressure(kg/cm2) |
Delivery amount [L/min] |
Weight [Kg] |
|---|---|---|---|---|
| CJ-50 | 8000 | 6.0 (60) | ||
| CJ-80Y | 28 | 0.6 | ||
| CJ-80 | 10000 | 7.0 (70) | At 50kg/cm2 | |
| CJ-90 |
